Stations

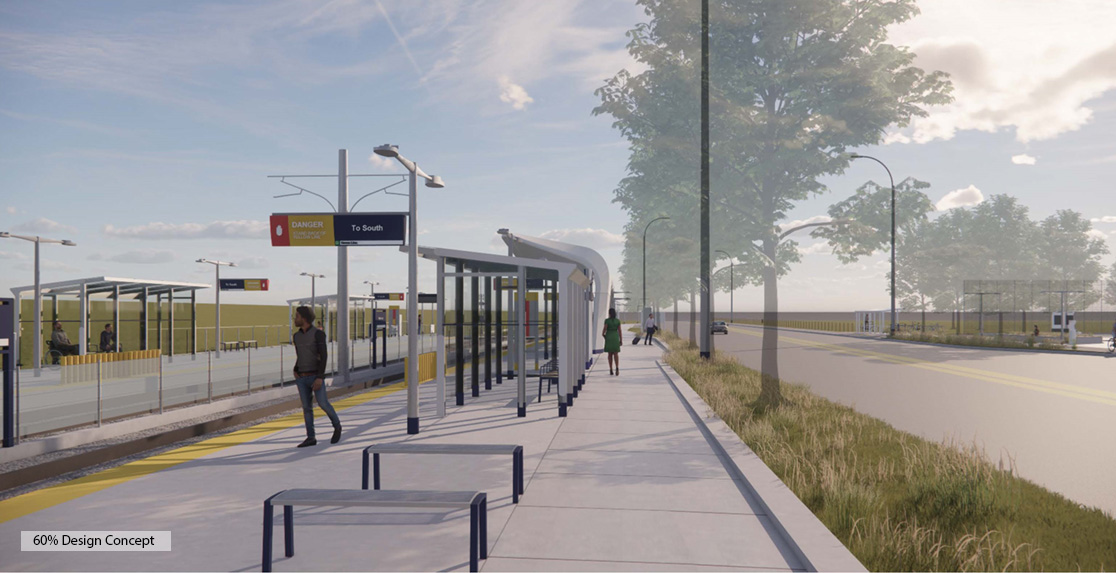

Station rendering of passenger shelters, canopy and platform.

Overview

Construction of SE stations to begin in 2025

On January 28, 2025, City Council voted yes on getting shovels in the ground this year in the southeast. Nine stations (between Ramsay/Inglewood and Shepard) have surpassed the 60% design milestone and will continue to be refined until they reach 90%, allowing construction to begin.

Concurrent to construction starting in the southeast, The City will begin work on a Functional Plan required for the Downtown Segment to advance design, validate the Province’s cost estimates, understand potential impacts to existing infrastructure and ensure the project is broadly supported by Calgarians prior to starting construction.

Map of Green Line showing SE Segment and Downtown Segment.

Download PDF map

How the Green Line design is developed

Renderings of Green Line stations are labelled as 30% design or 60% design throughout the website. This label refers to a design concept called the 30-60-90 IFC Process, which facilitates the ongoing development of drawings that can be Issued For Construction (IFC).

At 30%, major design elements, risks, the construction schedule and cost will be established. This forms the baseline for any project.
At 60%, the design elements are explored in more detail, including the materials that will be used and an analysis of the constructability and cost effectiveness.
At 90%, the design is fully developed with all plans and specifications, and compliance with codes and standards.
Any comments or revisions from the 90%, once successfully implemented, can then be converted into an IFC set of drawings, allowing construction to begin.

Rendering of Ramsay/Inglewood Station head from 12 Street S.E.

Station and design features

All stations will have similar shapes and use the same materials. Station canopy structures will be recognizable for their distinctive, flowing forms, inspired by a chinook cloud arch.

Station features

Ninety-metre platforms will provide ample boarding space for 2-car trains (84m long).
Platforms are 31 cm high.
Platforms will be centre loading or side loading.
Canopies at street-level stations will cover 25 per cent of the platform area, with additional glass passenger shelters for weather protection.
Safety and security features will include heated shelters, glass walls for visibility and security, open spaces, plenty of lighting and CCTV cameras.
Some stations will have plazas and spaces available for gatherings and special events.
Pathways and the cycle network will connect to several stations.

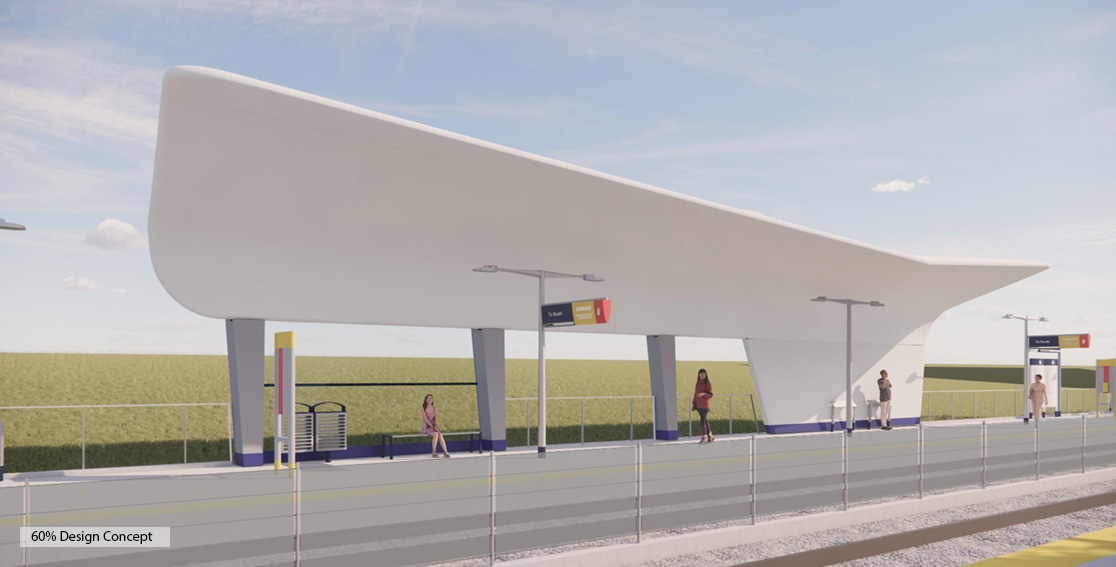

60% design concept of an at-grade station.

Design features

Station canopies are the design inspiration for all buildings and structures on the Green Line, which will all look and feel similar.
Canopies are sleek and smooth, without hard, rigid angles.
Canopies will have a degree of asymmetry and varying heights.
Seating and platform shelters will be integrated into the canopies.
Smaller items at the station such as benches, planters and waste containers will complement the canopy design.
